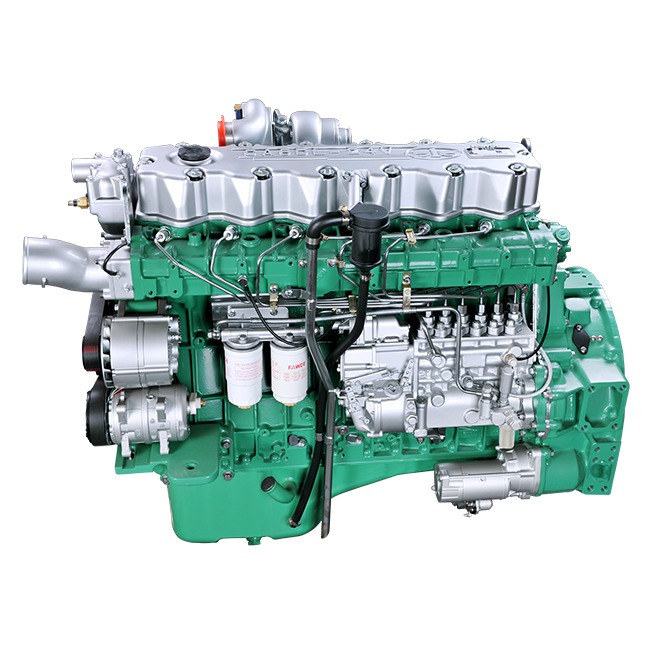

EURO II Vehicle Engine 6DF2 series

EURO II 6DF2 series

Model6DF2D-176DF2D-186DF2D-196DF2D-206DF2D-216DF2D-22
Type6-cylinder in-line, direct injection, water cooling, turbocharged inter-cooled
Bore×Stroke(mm)110×115
Valves/cylinder2
Displacement (L)6.557
Rated power125132140147155162
Rated speed (r/min)2300
Net power/speed(kW/r/min)123130138145153160
Maximum torque (Nm)620650680720750780
Maximum torque speed(r/min)1400 -1600
Fuel consumption (g/kW·h)202
Smoke (m-1)≤3.0
Noise dB(A)≤98
Emission Compliant(TAS)EUROⅡ
Net Mass (kg)700
Length×Width×Height(mm)1200×680×1030


Model6DF2-226DF2-236DF2-246DF2-256DF2-26
Type6-cylinder in-line, direct injection, water cooling, turbocharged inter-cooled
Bore×Stroke (mm)110×125
Valves/cylinder2
Displacement (L)7.127
Rated power160170177184192
Rated speed (r/min)2300
Net power/speed(kW/r/min)157167174181189
Maximum torque (Nm)780850890910930
Maximum torque speed (r/min)1300-1500
Fuel consumption (g/kW·h)202
Smoke (m-1)≤3.0
Noise dB (A)≤ 98
Emission Compliant (TAS)EURO Ⅱ
Net Mass (kg)700
Length×Width×Height (mm)1320×680×1100
