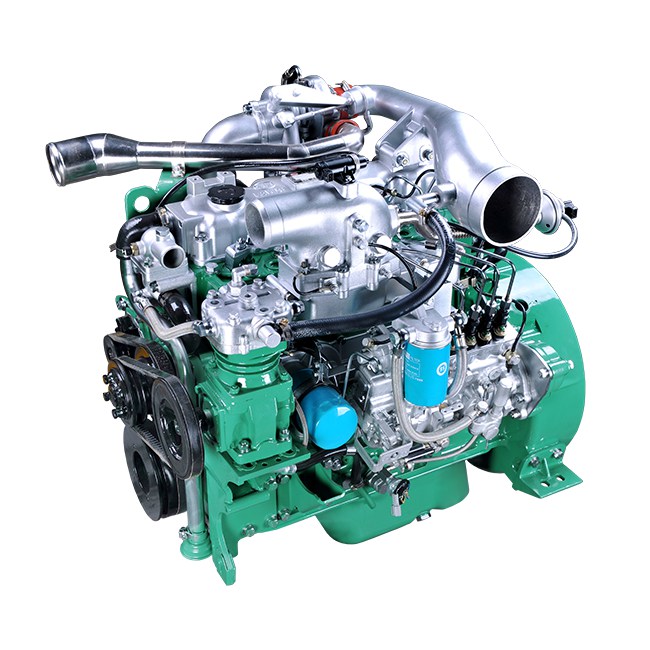

Động cơ xe EURO II
| Model | 4DF2-13 | 4DF2-14 | 4DF2-16 | 4DF2-17 |
| Type | 4-cylinder in-line, direct injection, water cooling, turbocharged inter-cooled | |||
| Bore×Stroke（mm） | 110×125 | |||
| Valves/cylinder | 2 | |||
| Displacement (L) | 4.751 | |||
| Rated power | 96 | 103 | 117 | 125 |
| Rated speed (r/min) | 2500 | 2300 | 2300 | 2300 |
| Net power/speed（kW/r/min） | 93 | 100 | 114 | 122 |
| Maximum torque (Nm) | 390 | 510 | 580 | 580 |
| Maximum torque speed(r/min) | 1500 | 1400 | ||
| Fuel consumption (g/kW·h) | ≤ 202 | |||
| Smoke (m-1) | ≤ 3.0 | |||
| Noise dB(A) | ≤ 98 | |||
| Emission Compliant（TAS） | EURO Ⅱ | |||
| Net Mass (kg) | 480 | |||
| Length×Width×Height（mm) | 935×720×940 | |||
