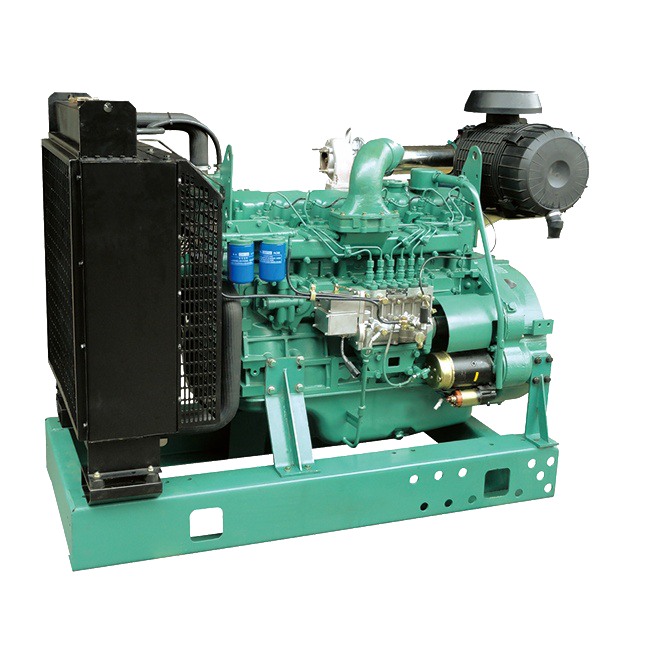

6DF Generating Set Engine

6DF

Rated speed: 1500rpm

Engine modelCA6DF2D-14DCA6DF2-17DCA6DF2-19D
Type6-cylinder 4-stroke
Air intake typeTurbochargedTurbo& intercool
Cooling modeWater cooling
Governor modeElectron
Bore×Stroke(mm)110×115110×125
Compression ratio17∶1
Rated speed(rpm)1500
Displacement(L)6.567.12
Rated power(without fan)(kW)96125140
Standby power(without fan)(kW)105138154
Fuel consumption(g/kWh)202202200
Oil consumption(L/h)0.080.080.06
Steady state speed regulation(%)≤3
Oil capacity including filter(L)2023
Emission compliantStageⅡ
The flywheel shell interfaceSAE3SAE2
Flywheel for 11.5″flexible coupling
Dry weight of Gen Pac(kg)8508801000
Overall dimension(st)(mm)
1386×680×1100
Fan consumption(kW)8
27℃ air consumption(m3/min)7912
Heat rejection of exhaust(kW)77102120
Exhaust gas temperature after turbine(℃)460470470
Exhaust gas flow(m3/min)192530
Heat rejection from engine(kW)141821
Heat rejection of coolant(kW)607781
Base configurationStandard configuration(add on the base)
Engine with fanIntake and exhaust sysytem: Air filter and connecting pipes; Connecting flang of exhaust pipe
Alternator 65A 28V Starter motor 5kW 24VCooling system: Radiator; Connecting pipes; Fan guard; Belt guard


Rated speed: 1800rpm

Engine modelCA6DF2D-16DCA6DF2-18DCA6DF2-21D
Type6-cylinder 4-stroke
Air intake typeTurbochargedTurbocharged& intercool
Cooling modeWater cooling
Governor modeMechanical or electronic
Bore×Stroke(mm)110×115110×125
Compression ratio17:1
Rated speed(rpm)1800
Displacement(L)6.567.13
Rated power(without fan)(kW)116132154
Standby power(without fan)(kW)128145170
Fuel consumption(g/kWh)202202200
Oil consumption(L/h)0.080.080.06
Steady state speed regulation(%)≤5 or ≤3
Oil capacity including filter(L)20
23
Emission compliantStageⅡ
The flywheel shell interfaceSAE3SAE2
Flywheel for 11.5″flexible coupling
Dry weight of base(kg)650680
Dry weight of Gen Pac(kg)8508801000
Fan consumption(kW)10
Base configurationStandard configuration(add on the base)
Engine with fanIntake and exhaust sysytem: Air filter and connecting pipes; Connecting flang of exhaust pipe
Alternator 65A 28V
Starter motor 5kW 24V
Cooling system: Radiator; Connecting pipes; Fan guard; Belt guard
