Động cơ xe EURO III

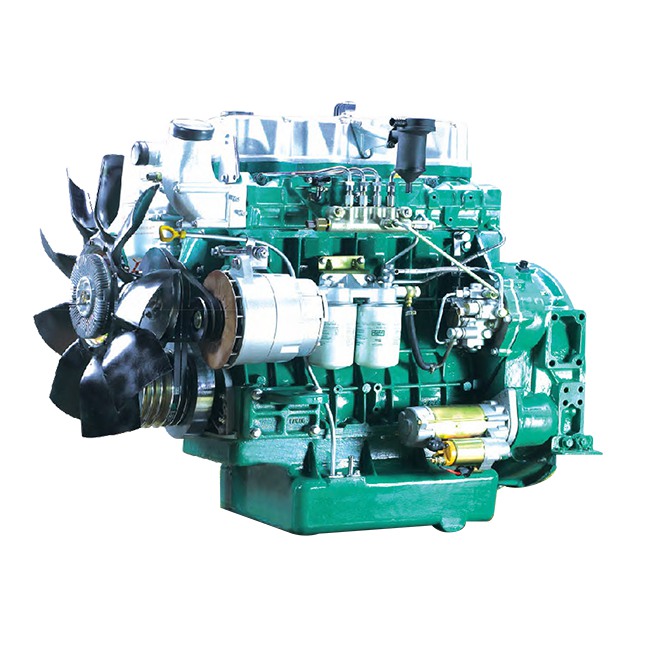

EURO III Vehicle Engine CA4DL series

Adopt electric-controlled high pressure common rail system, with higher oil injection pressure, greater atomization rate and more sufficient combustion;

Initially use four-valve technology at home, with high inlet and exhaust efficiency;

Chia sẻ:
ModelCA4DF3-13E3CA4DF3-14E3CA4DF3-15E3CA4DF3-16E3CA4DF3-17E3
Type4-cylinder in-line, direct injection, turbocharged&intercooling, common rail
Bore×Stroke (mm)110 × 125
Valves/cylinder2
Displacement (L)4.75
Rated power99109116115124132
Rated speed (r/min)250025002300250023002300
Net power/speed (kW/r/min)96/2500103/2500110/2300110/2500118/2300125/2300
Maximum torque (Nm)450450530500570600
Maximum torque speed (r/min)1400
Fuel consumption (g/kW·h)≤ 205
Smoke (m-1)≤ 0.8
Noise dB (A)≤ 98
Emission Compliant (TAS)EURO Ⅲ
Net Mass (kg)480
Length×Width×Height (mm)935×720×940

Fuel Efficient:

Adopt electric-controlled high pressure common rail system, with higher oil injection pressure, greater atomization rate and more sufficient combustion;

Initially use four-valve technology at home, with high inlet and exhaust efficiency;

Optional integrate VCU device (polymorphic switch and etc.) that is researched and developed independently, and oil supply can be adjusted according to vehicle load;


Reliable:

Adopt electric-controlled common rail system that is widely used in the world, with mature technology;

Use inter Euro first-class brand products for the key spare parts such as piston, piston ring, crank, bearing bush and high strength bolt;

Whole set B10 life span is 500, 000 km.


Comfortable:

Adopt Holland LMS vibration test system to make vibration testing optimization on the whole set, providing NVH support optimization for forming a complete set, with small vibration and low noise;

Optional second order balance mechanism for vibration reduction;

Optional cruise function, reduce driving strength;

Precise dynamic calibration makes the whole vehicle smooth in shifting;


Safe:

It is optional to install OBD fault detection for real-time fault alert.


Environment-friendly:

Adopt four-valve technology and electric-controlled high pressure common-rail technology, with low smoke;


Optimization of whole set:

Adopt Austria AVL vehicle power transmission system simulation software to calculate, analyze & compare, test and evaluate for the whole vehicle matching, and the whole vehicle has powerful matching and better economical efficiency;


Personal Design:

Optional GPS system, with vehicle management, real-time control, vehicle security, remote diagnosis and other functions;

Optional deputy shutdown, CAN instrument and other functions.
