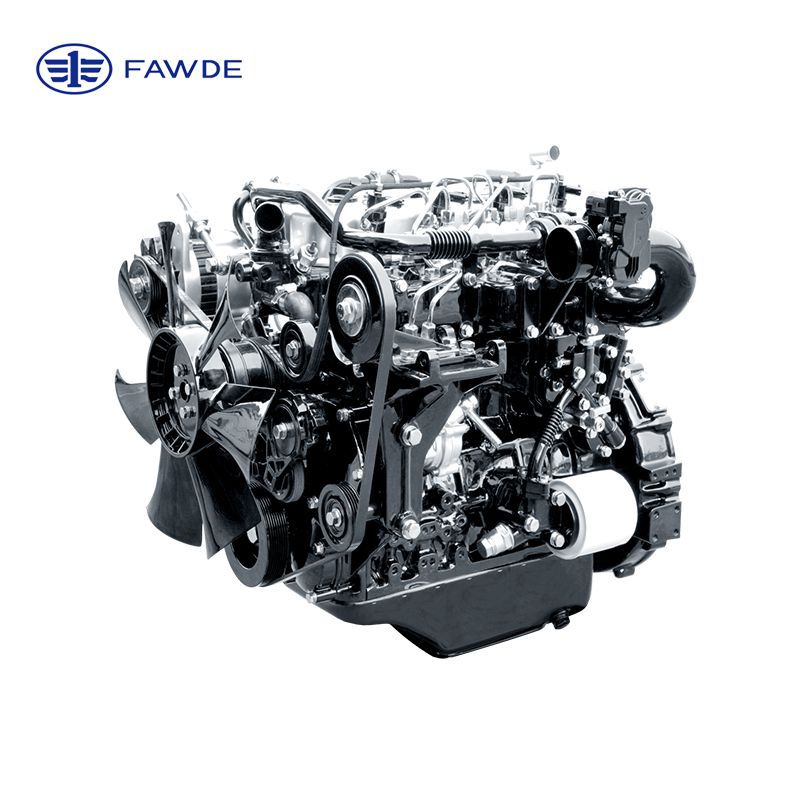

Specifications
| Engine Model | 4DW93-65E5 | 4DW93-73E5 | 4DW93-78E5 | 4DW93-84E5 | 4DW94-95E5 |
| Engine Displacement | 4-cylinder inline, direct injection, turbocharged with intercooler, electronic common rail | ||||
| Bore × Stroke(mm ) | 90×100 | 93×100 | |||
| Valve Count | 2 | ||||
| Total Displacement | 2.56L | 2.72L | |||
| Rated Power / Speed （kW/r/min） | 50/3000 | 56/3000 | 59/3000 | 64/3000 | 72/3000 |
| Net Power / Speed (kW/r/min) | 48/3000 | 54/3000 | 57/3000 | 62/3000 | 74/3000 |
| Maximum Torque / Speed (N·m/r/min) | 178/1900-2100 | 190/1900-2100 | 200/1900-2100 | 220/1900-2100 | 250/1900-2100 |
| Minimum Specific Fuel Consumption at Full Load (g/kW·h) | ≤205 | ||||
| Full Load Smoke Opacity (m⁻¹) | ≤0.3 | ||||
| Noise dB(A) | ≤95.5 | ||||
| Technology Path | BOSCH electronic common rail+EGR+DPF | ||||
| Dimensions (L × W × H)（mm） | 723×643×690 | ||||
Globally Leading Intelligent Power Solutions
We have delivered over 280,000 high-performance engines to 67 countries and regions worldwide. Explore intelligent manufacturing and reliable power to create greater value for your business.
