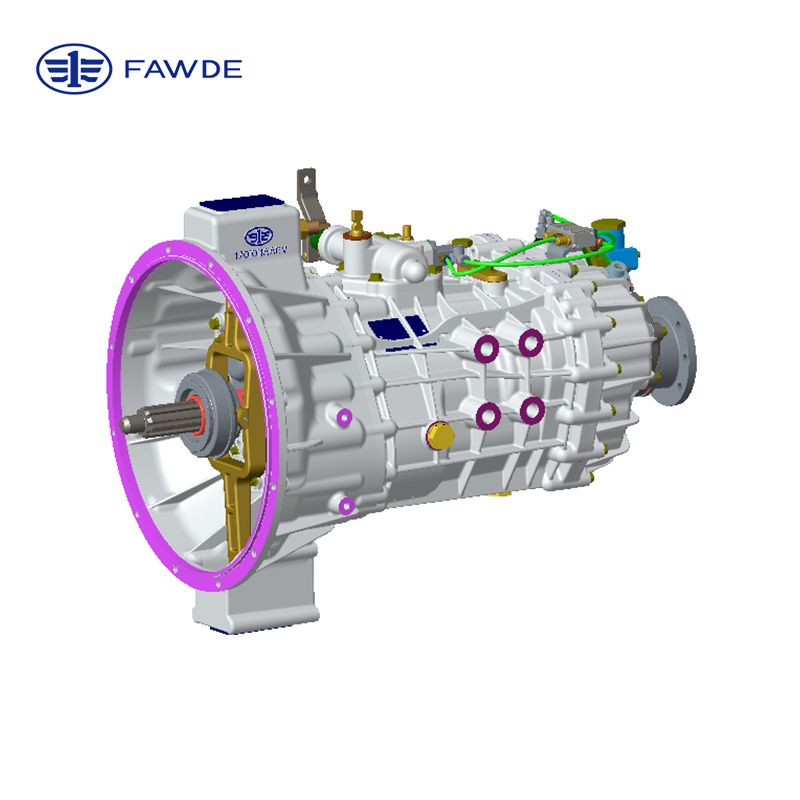

Technical Characteristics
Upgraded Main and Auxiliary Box Structure Design
B10 life of 500,000 km, approximately 200,000 km longer than competing products
Lightweight Design, Weighing Only 138 kg
Front-rear Split All-aluminum Housing Design, Compact Size and Lightweight
Optimized Design for Compact Structure and Higher Torque-to-weight Ratio
High Efficiency and Fuel Economy
Superior Powertrain Matching for Better Performance and Fuel Efficiency
Higher Gears Reduce Engine RPM, Lowering Fuel Consumption
Specifications
| Item | CA9TAX090/100M3 |
| Input Torque（Nm） | 900/1000 |
| Center Distance（mm） | 110 |
| Gear Ratio Range | 14.559（10.574-0.726） |
| Weight（kg） | 138 |
| Installation Length（mm） | 755 |
| Overall Efficiency | 97.77% |
| Noise Level（dB） | ≤89 |
