Technical Characteristics
Long Service Life
Long-life technology with B10 life up to 1.5 million km, an 87% improvement
Lightweight
Lightweight drive axle assembly technology, weight reduced by 65 kg
High Efficiency
Efficiency improvement technology, efficiency increased by 2%
Extended Oil Change
200,000 km extended oil change interval technology, doubling the previous cycle
Ride Comfort
Ride comfort technology, noise reduced by 4 dB(A)
Close Ratio
Newly designed close ratio gear system, gear ratio of 2.688

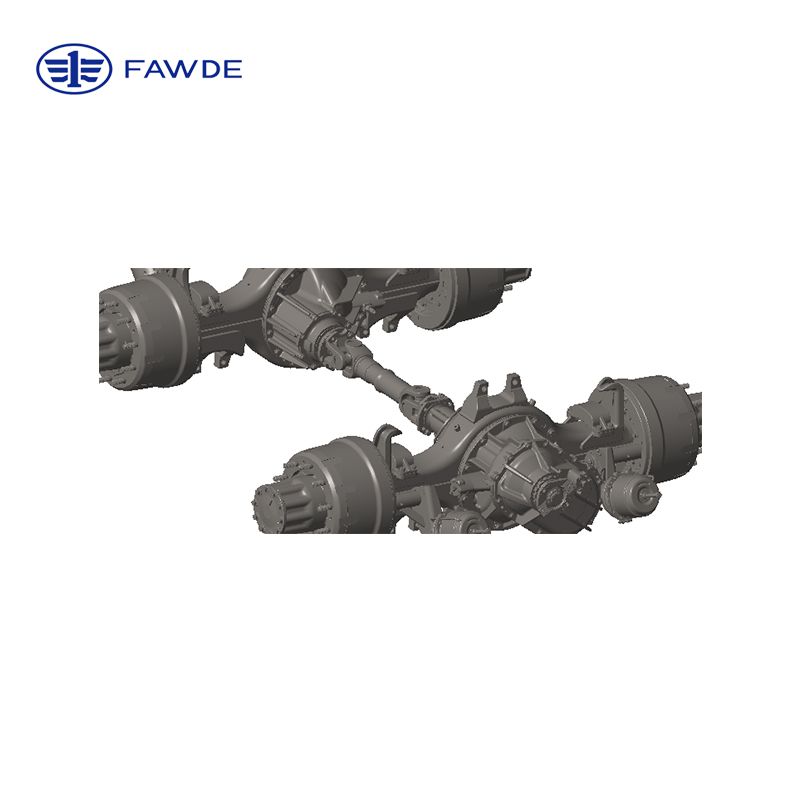

Axle Product Parameters
| Model | 440 Axle |
| Input Torque（Nm） | 30000 |
| Rated Axle Load（Kg） | 13000 |
| Gear Ratio Range | 2.688-3.727 |
| Brake Specifications（mm） | Ф410×220 |
| Axle Housing Type | Stamping and Welding |
| Track Width（mm） | 1830 |
| Axle Housing Cross Section（mm） | 160×150×14 |
